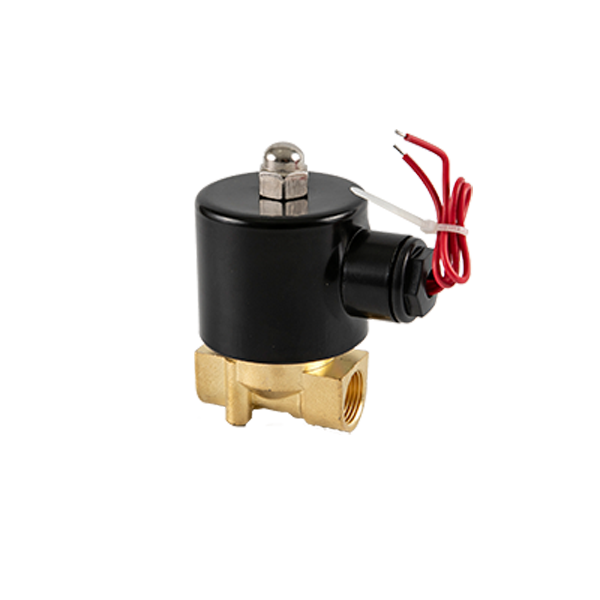

2W-040-10-Normally Open water solenoid valve.

Location:	China
Business Type:	Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price:	Consultation
Packing details:
Delivery time:
Payment method:

■Product Features

•Suitable medium:liquid,water,hot water,gas,mashgas,oil etc(≤20CST)

•Medium temp.:-5℃-80℃

•Action type: direct acting type, step by step direct acting type

•Working Status: Normally Open.

•Valve body material: brass(casted) ,Stainless Steel

•Diaphragm sealing: material: NBR,EPDM,VITION.

•Coil Protection level: DN≤25 Square Din Coil IP65 DN>25 Round Coil IP54

FEATURE
SPECIFICATION

MODEL	Connection G	Orifice	CValue	Working Pressure							Max Temp. NBR/VITON	Power		Dimension A×B×C (mm)
				Min.Working Pressure	Max.Working Pressure							Power
					Air		water liquid		Light oil ≤20CST			AC220V	DC24V
					AC	DC	AC	DC	AC	DC		VA	W
XSW-025-08K	1/4"	2.5	0.23	0	8	8	8	8	6	4	80℃/180℃	22	17	40×30×110
XSW-040-10K	3/8"	4	0.6	0	4	4	4	4	4	3	80℃/180℃	30	30	47×32×112
XSW-160-10K	3/8"	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	64×56×l20
XSW-160-15K	1/2"	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	57×53×120
XSW-160-15K	1/2"	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	64×56×120
XSW-160-15K	1/2"	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	68×56×126
XSW-200-20K	3/4"	20	7.6	0	8	8	8	8	4	4	80℃/180℃	30	30	64×56×126
XSW-200-20K	3/4"	20	7.6	0	8	8	8	8	4	4	80℃/180℃	30	30	72×56×126
XSW-250-25K	1"	25	12	0	8	8	8	8	4	4	80℃/180℃	30	30	85×73×138
XSW-250-25K	1"	25	12	0	8	8	8	8	4	4	80℃/180℃	30	30	92×79×138
XSW-250-25K	1"	25	12	0	8	8	8	8	4	4	80℃/180℃	35	30	100×79×143
XSW-320-32K	1 1/4"	30	20	0	8	8	8	8	4	4	80℃/180℃	30	30	94×79×150
XSW-320-32K	1 1/4"	32	24	0	6	6	6	6	4	4	80℃/180℃	35	30	110×88×166
XSW40CM0K	1 1/2"	36	26	0	6	6	6	6	4	4	80℃/180℃	35	30	108×88×170
XSW40CM0K	1 1/2"	40	29	0	6	6	6	6	4	4	80℃/180℃	35	30	110×94×172
XSW-500-50K	2"	44	40	0	6	6	6	6	4	4	80℃/180℃	35	30	118×94×185
XSW-500-50K	2"	44	40	0	6	6	6	6	4	4	80℃/180℃	35	30	135×94×185
XSW-500-50K	2"	50	48	0	6	6	6	6	4	4	80℃/180℃	35	30	155×114×188
XSW4WM0FK	1 1/2" Flange	40	29	0	6	6	6	6	4	4	80℃/180℃	35	30	150×142×235
XSW-500-50FK	2" Flange	50	48	0	6	6	6	6	4	4	80℃/180℃	35	30	185×152×250
XSW-025-08SK	1/4"	2.5	0.23	0	8	8	8	8	6	4	80℃/180℃	22	17	40×28×86
XSW-040-10SK	3/8"	4	0.6	0	4	4	4	4	4	3	80℃/180℃	30	30	42×28×116
XSW-160-10SK	3/8"	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	68×57×128
XSW-160-15SK	1/2"	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	68×57×128
XSW-200-20SK	3/4"	20	7-6	0	8	8	8	8	4	4	80℃/180℃	30	30	72×57×134
XSW-250-25SK	1"	28	12	0	8	8	8	8	4	4	80℃/180℃	30	30	98×76×145
XSW-320-32SK	1 1/4"	30	22	0	8	8	8	8	4	4	80℃/180℃	30	30	96×76×150
XSW-320-32SK	1 1/4"	30	22	0	6	6	6	6	4	4	80℃/180℃	35	30	115×86×165
XSW40CM0SK	1 1/2"	36	29	0	6	6	6	6	4	4	80℃/180℃	35	30	120×93×175
XSW-500-50SK	2"	46	46	0	6	6	6	6	4	4	80℃/180℃	35	30	120×94×186
XSW-500-50SK	2"	50	48	0	6	6	6	6	4	4	80℃/180℃	35	30	168×123×196
XSW-160-15SFK	1/2" Flange	17	4.8	0	8	8	8	8	4	4	80℃/180℃	30	30	106×95×165
XSW-200-20SFK	3/4"Flange	20	7-6	0	8	8	8	8	4	4	80℃/180℃	30	30	108×102×168
XSW-250-25SFK	1"Flange	25	12	0	8	8	8	8	4	4	80℃/180℃	30	30	140×108×178
XSW-320-32SFK	1 1/4" Flange	30	24	0	6	6	6	6	4	4	80℃/180℃	35	30	148×132×208
XSW-400-40SFK	1 1/2" Flange	36	29	0	6	6	6	6	4	4	80℃/180℃	35	30	158×142×215
XSW-500-50SFK	2" Flange	50	48	0	6	6	6	6	4	4	80℃/180℃	35	30	185×158×245
