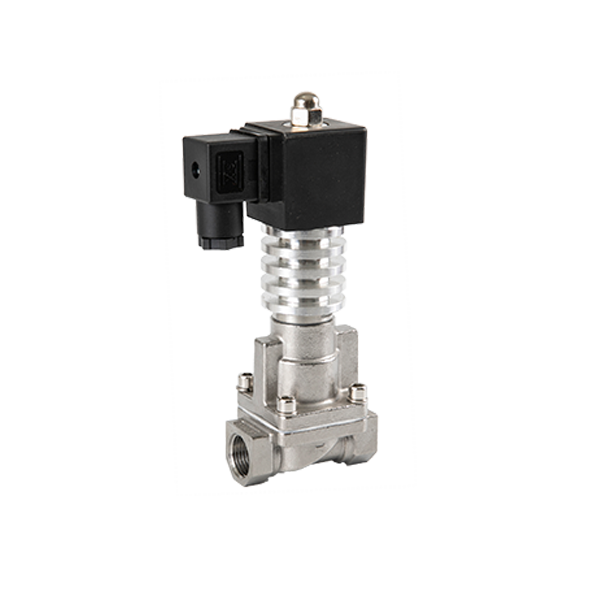

XSGW-15S-way high temperature solenoid valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■Product Features

•Suitable medium: high temperature gas, heat conduct oil

•Medium temp.: -5℃- 300℃. With radiating fin

•Action type: Pilot operated.

•Working pressure:Normally closed 0.5-20bar

•Valve body material: brass(forged), stain less steel (precision casting).

•Diaphragm sealing: material: Teflon+Metal

•Coil Protection level: Plastic coil IP65

Contact Us PDF Download

  • Model

    Product number

    Connection Gthread

    Orifice

    Flow path

    Cv

    Min.Work pressure

    Work pressure

    Coil configuration

    Max.Temp.

    Dimension

     A×B×C

    Max.Work pressure

    Coil insulation grade

    Power

    Steam

    Hot transfer oil

    VA

    W

    AC220V

    DC24V

    XSGW-10

    3/8"

    17

    6

    0.5

    20

    20

    F

    24

    18

    300

    78×55×185

    XSGW-15

    1/2"

    17

    6

    0.5

    20

    20

    F

    24

    18

    300

    78×55×185

    XSGW-20

    3/4"

    18

    8

    0.5

    20

    20

    F

    24

    18

    300

    85×59×195

    XSGW-25

    1"

    25

    13

    0.5

    20

    20

    F

    24

    18

    300

    100×68×208

    XSGW-32

    11/4"

    38

    28

    0.5

    20

    20

    F

    24

    18

    300

    120×91×220

    XSGW-40

    11/2"

    38

    30

    0.5

    20

    20

    F

    24

    18

    300

    120×91×225

    XSGW-50

    2"

    42

    34

    0.5

    20

    20

    F

    24

    18

    300

    150×105×235

    XSGW-10S

    3/8"

    14

    4.8

    0.5

    20

    20

    F

    24

    18

    300

    70×48×178

    XSGW-15S

    1/2"

    14

    4.8

    0.5

    20

    20

    F

    24

    18

    300

    70×48×178

    XSGW-20S

    3/4"

    19

    8

    0.5

    20

    20

    F

    24

    18

    300

    78×54×192

    XSGW-25S

    1"

    25

    13

    0.5

    20

    20

    F

    24

    18

    300

    98×70×205

    XSGW-32S

    11/4"

    38

    28

    0.5

    20

    20

    F

    24

    18

    300

    120×91×220

    XSGW-40S

    11/2"

    38

    30

    0.5

    20

    20

    F

    24

    18

    300

    120×91×225

    XSGW-50S

    2"

    42

    34

    0.5

    20

    20

    F

    24

    18

    300

    150×105×235

    XSGW-25 SF

    Flange connection

    25

    13

    0.5

    20

    20

    F

    24

    18

    300

    137×70×240

    XSGW-40SF

    38

    30

    0.5

    20

    20

    F

    24

    18

    300

    162×91×270

    XSGW-50SF

    42

    34

    0.5

    20

    20

    F

    24

    18

    300

    202×105×280
