XSFP-15K-ultra high pressure solenoid valve for gas,liquid,light oil

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■Product Features

•Suitable medium: strong acid,strong alkaline ect corrosive liquid

•Medium temp.: 0℃-80℃

•Action type: direct acting type

•Working pressure:0-2 bar

•Valve body material: Teflon

•Diaphragm sealing material: Viton

•Coil Protection level: Plastic coil IP65

•Coil Power :30W

Contact Us PDF Download

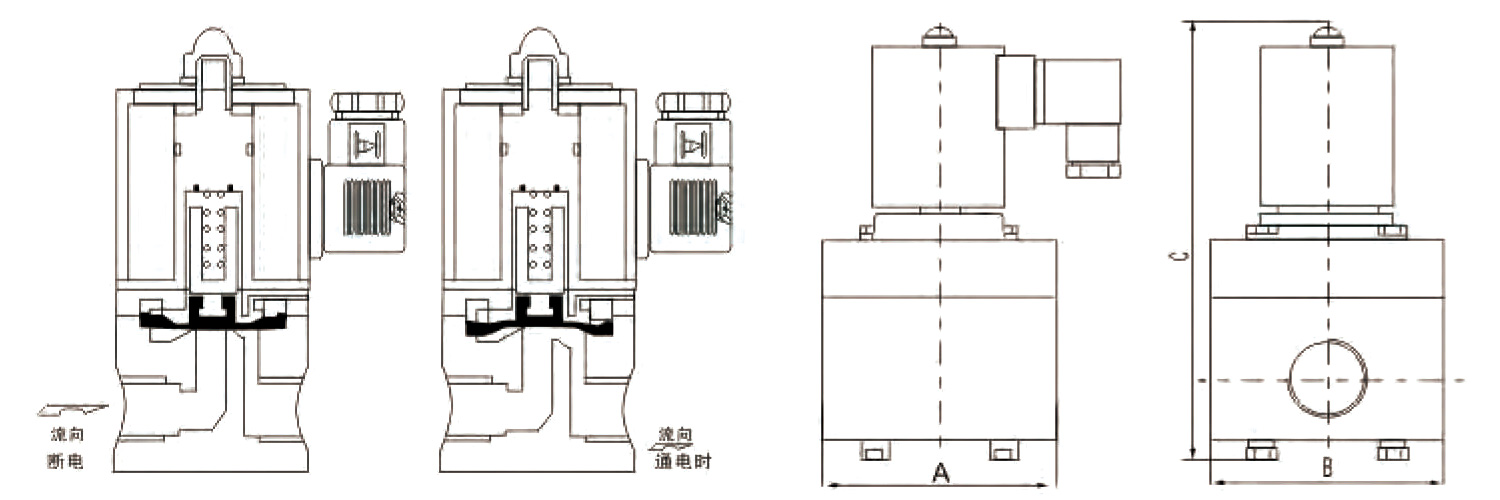

  • ■Internal structure dimension drawing

    ■Technical Parameters

    Model

    Product number

    Connection G thread

    Interface thread G

    Orifice

    Flow through (mm)

    Cv

    Working Pressure  bar

    Dimension

    A×B×C

    XSFP-10

    3/8"

    5

    0.35

    0-2

    50×54×108

    XSFP-15

    1/2"

    5

    0.35

    0-2

    50×54×108

    XSFP-20

    3/4"

    5

    0.35

    0-2

    64×68×110

    XSFP-25

    1M

    5

    0.35

    0-2

    73×79×122

    XSFP-15 Big

    1/2"

    11

    3.3

    0-1

    78×81×148

    XSFP-20 Big

    3/4"

    11

    3.3

    0-1

    76×81×148

    XSFP-25 Big

    1"

    11

    3.3

    0-1

    87×95×165

    XSFP-15K

    1/2"

    5

    0.35

    0-1

    50×54×130

    XSFP-20K

    3/4"

    5

    0.35

    0-1

    64×68×135

    XSFP-25K

    1"

    5

    0.35

    0-1

    73×79×150
