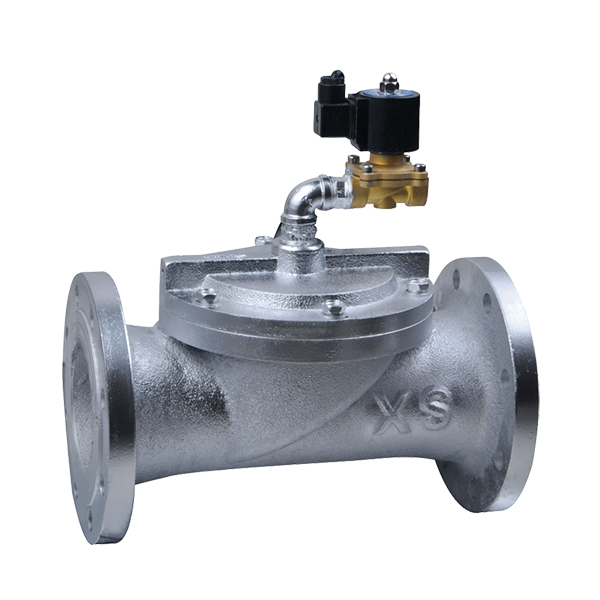

XSDF-100F-stainless steel steam solenoid valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■XSDF Series Underwater Fountain solenoid valve

■Product Features

•Suitable medium: water

•Medium temp.: -5°C-80°C

•Working pressure: 0-6 bar

•Valve body material: brass(forged),stainless steel(precision casting),cast iron

•Life :200000 cycles

•Lead wire lengtd of coil: 1m, if need longer please specify when ordering.

Contact Us PDF Download

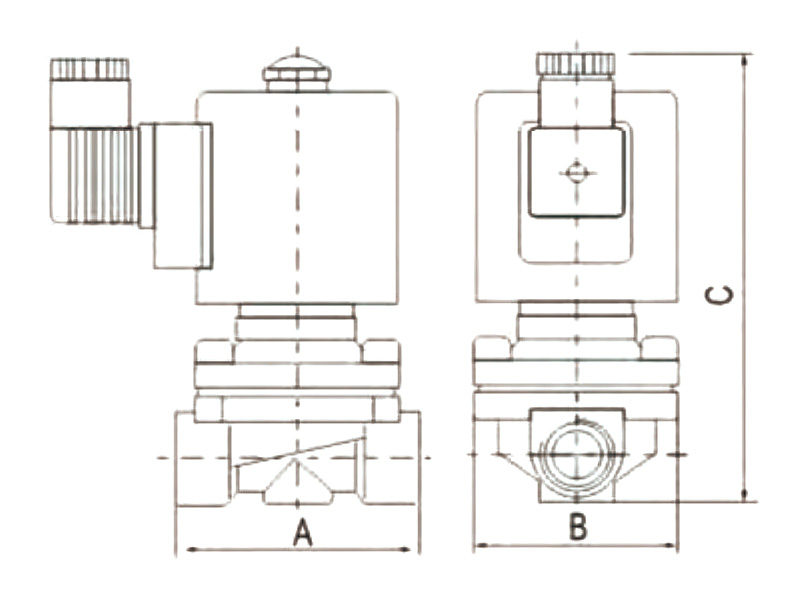

  • ■Internal structure dimension drawing



    ■Technical Data

    Model

    Connection G tdread

    Orifice(mm)

    Cv



    Working pressure bar

    Coil configuration

    Dimension

    A×B×C

    Material

    AC220V

    DC24V

    Coil insulation grade

    Power

    VA

    W

    AC220V

    DC24V

    XSDF-15

    1/2M

    17

    3.8

    0-6

    0-6

    F

    26

    18

    64×56×112

    Brass

    XSDF-20

    3/4"

    20

    7.6

    0-6

    0-6

    F

    26

    18

    65×56×115

    XSDF-25

    1"

    25

    12

    0-6

    0-6

    F

    26

    18

    85×73×125

    XSDF-32

    11/4"

    30

    20

    0-6

    0-6

    F

    26

    18

    94×80×135

    XSDF-32

    11/4"

    32

    24

    0-6

    0-6

    F

    36

    27

    110×88×158

    XSDF-40

    11/2"

    36

    26

    0-6

    0-6

    F

    36

    27

    108×88×158

    XSDF-40

    11/2"

    40

    30

    0-6

    0-6

    F

    36

    27

    112×94×116

    XSDF-50

    2"

    44

    40

    0-6

    0-6

    F

    36

    27

    118×94×178

    XSDF-50

    2”

    44

    40

    0-6

    0-6

    F

    36

    27

    135×94×178

    XSDF-50

    2"

    50

    48

    0-6

    0-6

    F

    36

    27

    155×114×180

    XSDF-65SF

    Flange Connect

    65

    50

    0.3-6

    0.3-6

    F

    26

    18

    252×185×340

    SS304

    XSDF-80SF

    80

    80

    0.3-6

    0.3-6

    F

    26

    18

    272×198×355

    XSDF-100SF

    100

    125

    0.3-6

    0.3-6

    F

    26

    18

    343×230×380

    XSDF-65F

    65

    50

    0.3-6

    0.3-6

    F

    26

    18

    250×185×335

    Cast iron

    XSDF-80F

    80

    80

    0.3-6

    0.3-6

    F

    26

    18

    275×198×360

    XSDF-100F

    100

    125

    0.3-6

    0.3-6

    F

    26

    18

    348×215×375

    XSDF-125F

    125

    220

    0.3-6

    0.3-6

    F

    26

    18

    405×250×460

    XSDF-150F

    145

    280

    0.3-6

    0.3-6

    F

    26

    18

    450×286×490
