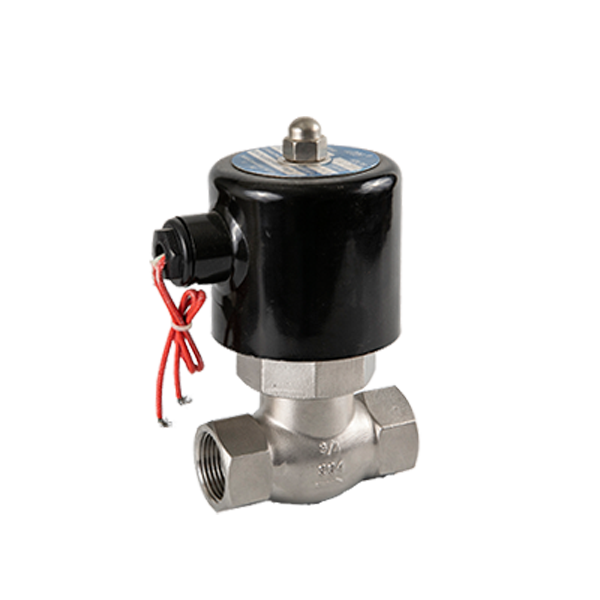

2L-20S- hot water solenoid valve

Location: China
Business Type: Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price: Consultation
Packing details:
Delivery time:
Payment method:

■2L(US) Series 2/2 way Piston Steam solenoid valve

■Product Features

•Suitable medium: steam,gas,water

•Medium temp.: -5℃- 200℃

•Action type: Pilot operated type

•Working pressure: 0.5 -16 bar

•Valve body material: Brass(casted). Stainless steel (precision casting).Forged copper

•Piston type sealing: material: Teflon

•Coil Protection level: Iron clad coil IP54

•Coil power:50VA(AC), 30W(DC)

Contact Us PDF Download

  • MODEL

    Connection G

    Orifice（mm)

    Cv

    Pressure

    Dimension

    L×W×H(mm)

    Material

    AC220V

    DC24V

    2L-15

    1 12"

    17

    4.8

    0.5-16

    0.5-16

    80×35×140

    Brass

    2L-20

    3/4"

    17

    4.8

    0.5-16

    0.5-16

    80×40×145

    2L-25

    1"

    20

    12

    0.5-16

    0.5-16

    86×46×155

    2L-32

    11/4"

    30

    22

    0.5-16

    0.5-16

    110×63×162

    2L-40

    11/2"

    30

    22

    0.5 ~ 16

    0.5-16

    110×63×170

    2L-50

    2"

    40

    30

    0.5-16

    0.5-16

    118×76×192

    2L-15S

    1 12"

    17

    4.8

    0.5-16

    0.5-16

    80×42×145

    SS304

    2L-20S

    3/4"

    17

    4.8

    0.5-16

    0.5-16

    80×42×145

    2L-25S

    1"

    20

    12

    0.5- 16

    0.5-16

    90×52×158

    2L-32S

    11/4"

    30

    22

    0.5-16

    0.5-16

    110×67×175

    2L-40S

    11/2"

    30

    22

    0.5-16

    0.5-16

    110×69×175

    2L-50S

    2"

    40

    30

    0.5-16

    0.5-16

    118×82×192

    2L-20F

    4-Φ14 hole Φ75

    17

    4.8

    0.5-16

    0.5-16

    110×100×178

    Brass

    2L-25F

    4-Φ14 hole Φ85

    20

    12

    0.5-16

    0.5-16

    110×110×190

    2L-32F

    4-Φ18 hole Φ100

    30

    22

    0.5-16

    0.5-16

    130×132×205

    2L-40F

    4-Φ18 hole Φ110

    30

    22

    0.5-16

    0.5-16

    130×142×210

    2L-50F

    4-Φ18 hole Φ125

    40

    30

    0.5-16

    0.5-16

    140×152×235

    2L-25SF

    4-Φ14 hole Φ85

    20

    12

    0.5-16

    0.5-16

    125×108×185

    SS304

    2L-32SF

    4-Φ18 hole Φ100

    30

    22

    0.5-16

    0.5-16

    150×130×200

    2L-40SF

    4-Φ18 hole Φ110

    30

    22

    0.5-16

    0.5-16

    170×142×210

    2L-50SF

    4-Φ18 hole Φ125

    40

    30

    0.5-16

    0.5-16

    140×152×235
